Finding reliable LED fixtures to illuminate the patio, entry steps and storage cupboards takes some study. Here are three products that have proved to be reliable through years of testing.
By Bob Livingston \ Photos by author

JHBOX solar motion light does a good job of illuminating all the rungs on the entry steps. Light will come on when the electric eye senses motion and stays on for 25 seconds.

JHBOX solar motion light

JHBOX solar motion light does a good job of illuminating all the rungs on the entry steps. Light will come on when the electric eye senses motion and stays on for 25 seconds.

E

ver since Thomas Edison invented the light bulb, people have been on a constant quest to find the best way to illuminate dark places. First came incandescent lights, which were hugely inefficient but lit up the world. Fluorescent fixtures, which produced less heat and could generate more light from less power, hit the market in 1934, though it wasn’t until the 1980s when they began showing up anywhere but businesses and warehouses. And then came the light-emitting diode (LED).

To say the invention of LED lighting was a giant leap toward efficiency and cost effectiveness is an understatement. The fact that LED fixtures run cooler, are brighter, last a lot longer, are relatively inexpensive and can be purchased in a variety of color (light) temperatures makes it possible to identify a number of places where added lighting will improve livability and safety. For RVers, lighting up the patio, the entry steps and storage compartments (inside and out) are logical places for additional light — if you go on the Internet you’ll find hundreds of imported products with wacky names that supposedly fit this bill. But not all are created equal; after years of testing under full time usage, we can recommend three products that perform as advertised, are reliable and inexpensive.

Leap of Faith
RV entry steps are an obvious necessity, but reality suggests that they can be dangerous without proper illumination. The industry continues to make improvements in this department, but people still misstep when exiting the RV and are injured — usually caused by not holding on and a lack of lighting. JHBOX Solar Motion Sensor Outdoor Lights (https://amzn.to/3aYbvmC) may not be the most stylish on the market, but they provide uninterrupted function for a long time, plenty of light and are easy to mount — and let’s not forget that you can buy four of them for $22.99.

These odd-shaped fixtures are waterproof and have 30 LEDs that shine light over a 140-degree area. Mounted next to the entry steps, they bathe all the rungs with plenty of light, making it much safer to get in and out of the RV. An attached solar panel provides the internal lithium battery recharging with eight hours of exposure to the sun, and a motion sensor — which senses movement from 3-5 meters — turns the light on when it’s needed and stays on for 25 seconds after it senses a lack of movement. A push-button switch next to the electric eye can manually turn the light on if desired. Working time is 8-10 hours, which is plenty since the light is usually used intermittently.

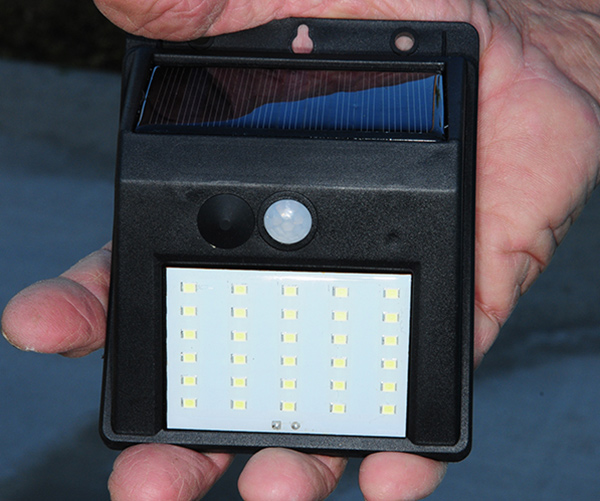

The housing
The housing is not very stylish but takes up little space when mounted on the sidewall near the steps. A push button next to the electric eye allows for manual activation of 30 LEDs. This fixture can also be used anywhere where extra light is needed.
We mounted this light on the sidewall adjacent to the top entry step; one or more screws can be used to keep the fixture secure on the wall. It worked flawlessly for three years before needing replacement. Not bad for a little more than five bucks a light — and the safety angle is priceless.
Built-in solar panel
Built-in solar panel charges internal lithium battery; exposure to the sun for eight hours provides enough energy for 8-10 hours of light.
Hiding in the Cupboard
We’ve all experienced a mysterious “disappearance” of a needed item in a storage cabinet or pantry. You know it’s there, but the lack of light makes it difficult to find — especially if you pack these areas with too many foodstuffs. Fumbling through dark shelves usually results in a few choice words before reaching for a flashlight. Well, tamp down the expletives; the motion-activated Vyanlight LED Closet/Under Cabinet Light (https://amzn.to/3E443mm) makes a cool addition to any cabinet/pantry interior. While the name suggests that it’s primarily designed for mounting under a cabinet to illuminate a countertop, it’s equally at home inside any storage cabinet, inside or outside.
Vyanlight LED Closet/Under Cabinet Light
Vyanlight LED Closet/Under Cabinet Light illuminates the inside of cupboards when it senses motion. Here, it’s mounted on the inside of the door. It can also be mounted above a shelf or vertically on an interior wall. Activation of light is instantaneous.
The key is the motion activation, eliminating the need for a switch, and it’s USB rechargeable, so replacing batteries is not necessary. The mostly metal body is a svelt 1 ¼ by 7 inches and it’s mounted via an adhesive magnetic strip that is attracted to the metal in the light housing. While the mounting system makes it very convenient to install, hanging the light from a top shelf or under a cabinet presents a little too much weight for the magnetic strip. We elected to use a couple of small, round neodymium magnets (purchased at a local hardware store) in lieu of the strip to hold the fixture in place more securely. (We found the magnetic strip worked better when the light was mounted on a sidewall that is less susceptible to movement.)

Attaching the light using magnets allows the housing to be pulled off the wall or shelf and plugged into a nearby USB cable for charging. It takes an hour or so to complete the charging, and because the light is used intermittently, the charge lasts for a very long time.

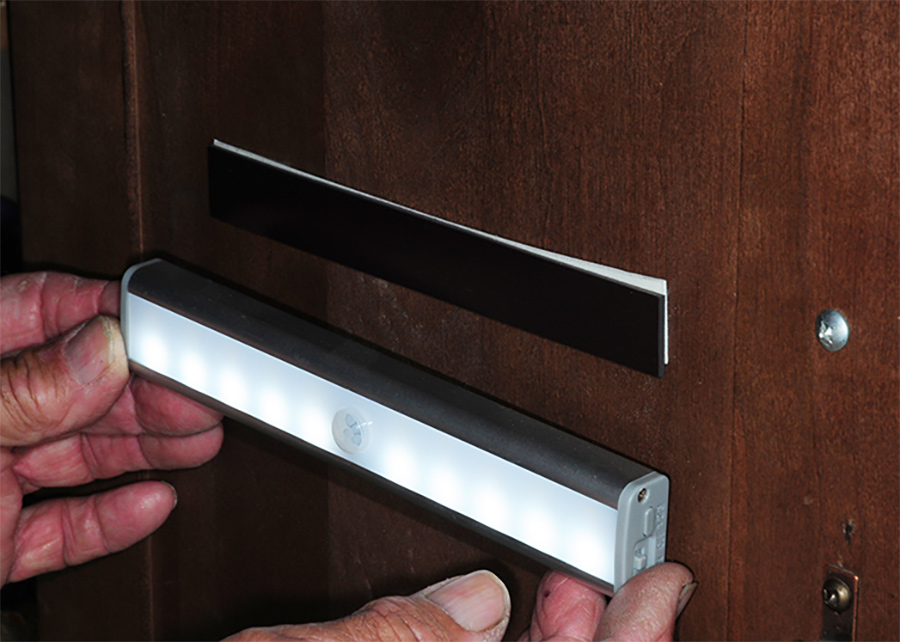

Installing the Vyanlight LED Closet/Under Cabinet Light
Charging the Vyanlight LED Closet/Under Cabinet Light
Light fixture is mounted using an adhesive-backed magnetic strip. This allows the housing to be removed from the mounting location without tools for charging via an USB outlet. The magnetic strip is a good idea, but the housing may let go when mounted under a cabinet or shelf. Small neodymium magnets were added to support the housing and defy gravity.
The 30 LEDs are dimmable and there are four modes for adjusting the amount of light projected inside a cabinet or on a countertop. These modes can be switched to provide light from 10, 20 or 30 LEDs, or be set to stay for any desired length of time. Once motion is sensed, the light is automatically turned on and stays on for 20 seconds after motion ceases; sensitivity reaches out to 10 feet.

These lights, mounted in a fifth wheel, have been in full-time RV service for three years with no hiccups, which is pretty amazing for something that can be purchased for only $23.99 (two units).

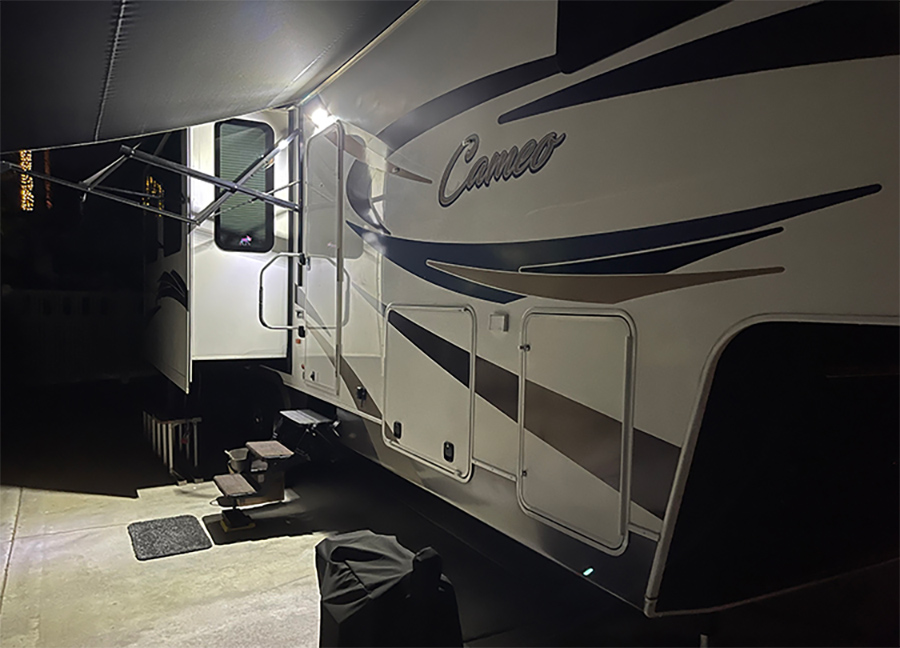

Dream Lighting LED fixture
Dream Lighting LED fixture was surface mounted and hard wired in the same location as the factory incandescent light. Its 720 lumens of light bathe the entire patio (and more) with a cool light; LEDs are also dimmable.
Light Up Your Life — On the Patio
Patio lights come in all shapes and sizes, and many are too anemic to illuminate a large area. Many RV manufacturers have transitioned to LED strip lights mounted to a track below the awning roll, but unless the awning is extended, some of the potential light is blocked by the rolled-up awning material. The Dream Lighting LED Heavy Duty Awning Light Bar (now that’s a mouthful; https://amzn.to/3vzltnM) is compact and will illuminate the entire patio and more — and it sells for only $28. While there are numerous fixtures floating around the Internet, this model passed muster (more than 1 ½ years of service) — so much so, that additional units were installed, replacing the round scare lights on the corners of the fifth wheel.
The metal body measures 8 x 1 5/8 inches and, when surface-mounted, only protrudes 1 ¼ inches from the sidewall. There’s notable heft to this fixture, which contributes to its durability, and cooling fins built into the waterproof housing dissipate heat from the LEDs while providing a “techy” look. It must be hard wired into the RV’s 12-volt DC system, an easy task if you’re replacing an existing fixture. If this fixture is replacing the strip lighting, you can route new wire along the strip rail, which may not be pretty, or remove the strip light and use the space in the rail to conceal a two-wire cable. In both cases, power can be picked up from the source at one end of the strip light. If there is power on the other side of the wall where the light fixture will be mounted, wiring can be fished to that location and a new switch can be employed.

The LEDs in the fixture provide 720 lumens of cool light, projecting a 40-degree downcast beam — and the LEDs are dimmable, which is nice for after-dinner lounging when too much light spoils the ambiance.

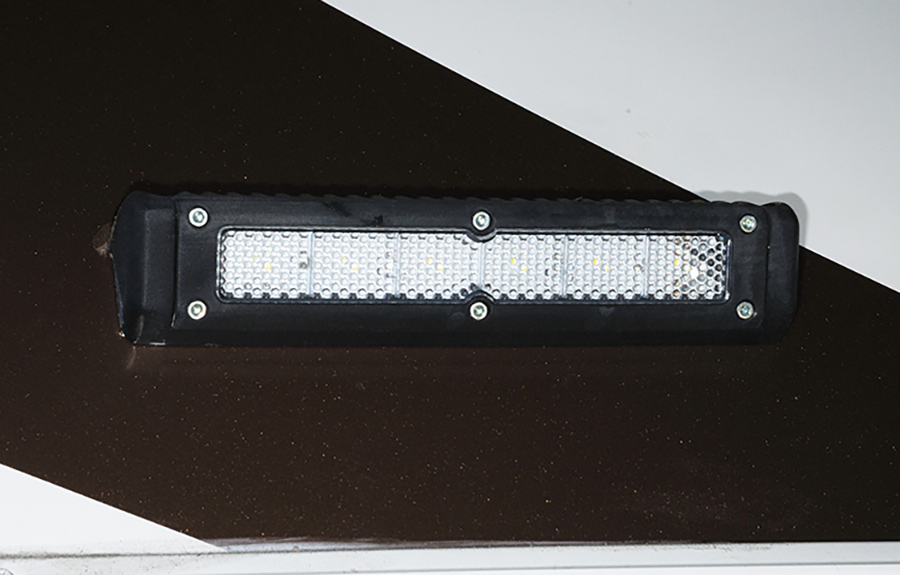

Vyanlight LED Closet/Under Cabinet Light closeup
The stout metal body is waterproof and compact. This fixture has provided years of interrupted service and makes a viable replacement for the round scare lights commonly founds on RVs.
Vyanlight LED Closet/Under Cabinet Light closeup
The stout metal body is waterproof and compact. This fixture has provided years of interrupted service and makes a viable replacement for the round scare lights commonly founds on RVs.
The metal body measures 8 x 1 5/8 inches and, when surface-mounted, only protrudes 1 ¼ inches from the sidewall. There’s notable heft to this fixture, which contributes to its durability, and cooling fins built into the waterproof housing dissipate heat from the LEDs while providing a “techy” look. It must be hard wired into the RV’s 12-volt DC system, an easy task if you’re replacing an existing fixture. If this fixture is replacing the strip lighting, you can route new wire along the strip rail, which may not be pretty, or remove the strip light and use the space in the rail to conceal a two-wire cable. In both cases, power can be picked up from the source at one end of the strip light. If there is power on the other side of the wall where the light fixture will be mounted, wiring can be fished to that location and a new switch can be employed.

The LEDs in the fixture provide 720 lumens of cool light, projecting a 40-degree downcast beam — and the LEDs are dimmable, which is nice for after-dinner lounging when too much light spoils the ambiance.
